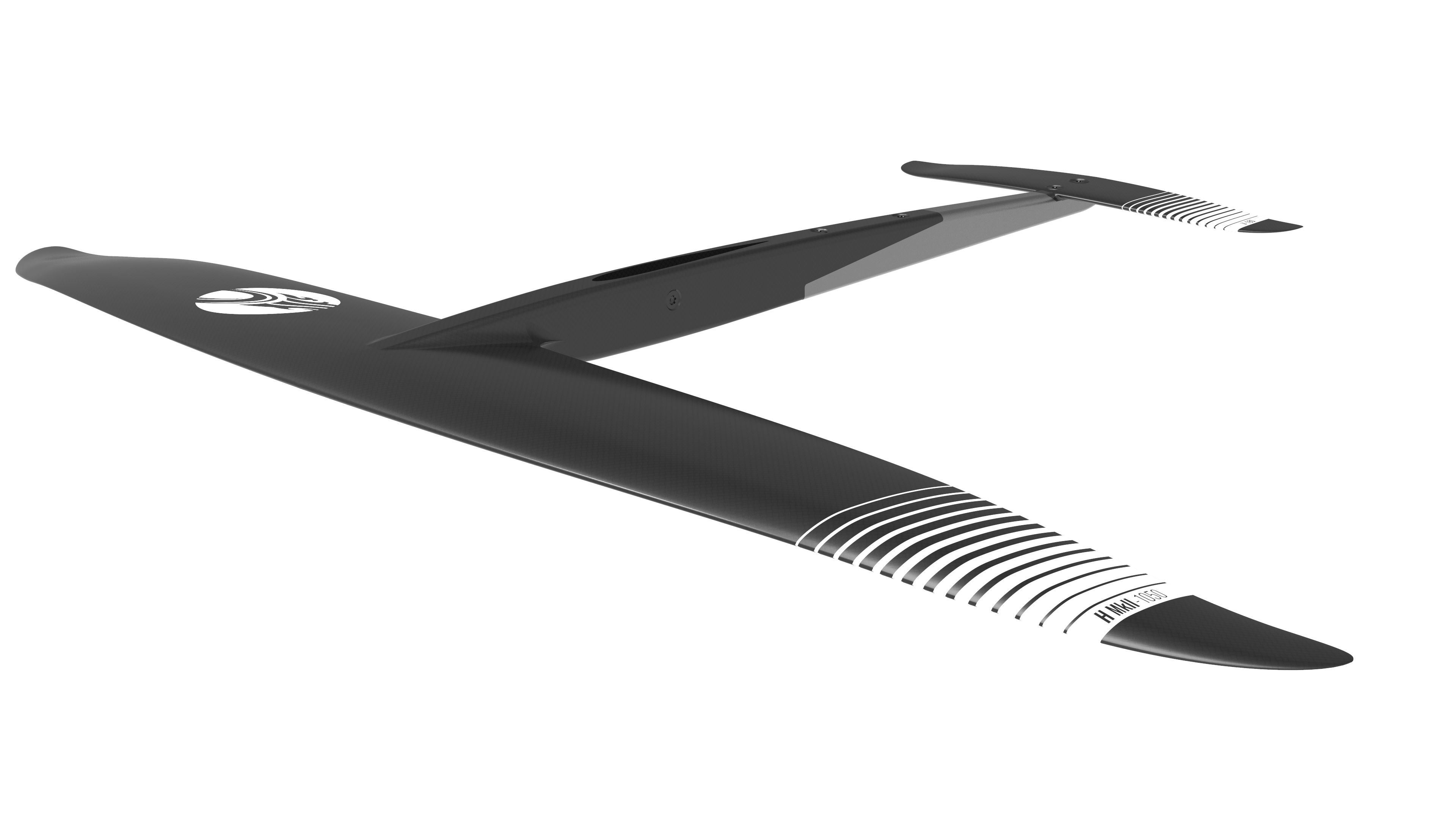

Just when you thought a product couldn’t get better, the new H-Series MkII pushes into the future of foil design and sets a new benchmark for efficiency and performance. The design team have implemented new technology learnt from the collaboration with Sintef. Water testing in the biggest tank in Europe has refined the H-series tip shape to allow the tips to breach and re-enter without cavitation. This allows more progressive riding and radical turns, be it with a kite, wing or prone. The new leaner profile now boasts an increased speed range which helps entry into freestyle tricks or on the race field. It seamlessly pairs with any of Cabrinha’s V-series stabs and is part of the modular Cab Fusion system.

The Fusion H-Series Kits come with everything you need, you just need to add your mast of choice. (Masts sold separately)

INCLUDED IN KIT

Wing & Stabilizer
Fusion Fuselage Alloy Medium
Track Nut Train X2
Screw Set Foam Core Boards

Design Profile

High aspect ratio, swept outline, Ultra lean efficient profile, moderate anhedral with flared tips.

Wing Features

Ultra Efficient Design
Ultra Lean Profile
Refined Tip Shape.
Tapered Fit
Increased Torsional Stiffness
High Aspect Ratio
Barrel Nut Secure Connection
Pre Preg Carbon Construction
Modular Design to work with Cab Fusion Products

Tech Specs

H550- 550cm², WS 690, AR 9.52, Chord 110mm
H700- 700cm², WS 815, AR 9.49, Chord 120mm
H850- 850cm², WS 900, AR 9.53 Chord 130mm
H1050- 1050cm², WS 1000, AR 9.52, Chord 140mm
H1300 - 1300c m ², WS 1090, AR 9.14, Chord 150mm

Set includes:

Wing cover, 2 x m6x30mm, 1 x m6x15mm, m6 barrel nut, screws.
